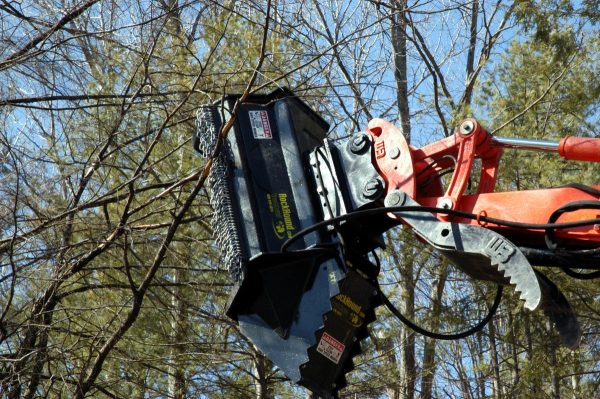

40EX-HD Excavator Flail Mower

Description

When maximum brush clearing is the goal, the 40EX HD Brush Mower is the robust tool of choice for professionals. It can safely and quickly turn a tree, brush pile or woody area to mulch in minutes. The 40EX HD transforms backhoes and excavators into powerful shredders and long-reach boom mowers. Cutting capacity .5-6”.

We are here to help you! Contact us for new attachments, parts information, or dealer info.

Get a Quote

Request a Quote

Equipment Financing Available

High-Performance Cutter Drum: More power for tougher tasks.
Extra-Strength Thumb Saddle: Serrated edge works with excavator thumb to grab and remove debris or obstacles.
Bolt-on Excavator Mount: Every model includes excavator-specific mount.
Mounts: Most compact excavators or backhoes 16,000 to 20,000 pounds.
Piston Motor: Available for high pressure power units.
Composite Dampener Washer: Isolates operational vibration and increases drive component lifespan.
Wire Guards: Anti-wrap design protects bearings and seals from debris.
True Shaft Technology: An electronically balanced cutter drum with serviceable hubs to ensure straight shafts that run smooth for years of reliable, vibration-free operation.
Triple Flail Knives: Reversible triple knife 2.25-pound side slicer knives plus a 2-pound straight knife provide 7 pounds of knives in each station adding power and extra cutting surface.
Bolt-on Chain Guards: Easily replaceable if damaged.
Direct Drive Design: Maximizes power transfer to cutter drum.
SAE Compliant: Exceeds all SAE J1001 standards for flail mowers.
HD, Single-Piece Frame: Increases strength without adding weight.
Hoses and Couplers: 100” Hydraulic hoses and flat face couplers are complementary.
The BrushHound 40EX HD is built tough for the toughest jobs. It weighs 1,170 pounds, has a heavy-duty single-piece frame, a half-inch cutter drum and end plates that are 3/8” thick. It has an optional piston motor to adapt to high-pressure power units. It uses the innovative triple-flail knife design available on all BrushHound mowers.
Power Unit Size 16,000 - 24,000 lbs.
Cutting Width 40"
Overall Width 67"
Weight 1,170 lbs.
Number of Knives 24-Slicer | 12-Center
Brush Capacity 5"
Hydraulic Flow Req 25 GPM
Motor Type Piston
