Orchard LP Flail Mower

Description

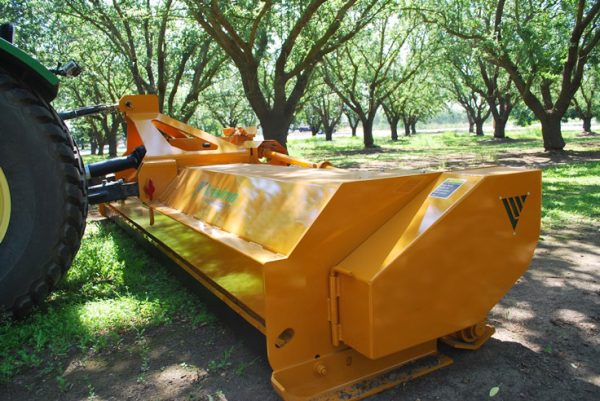

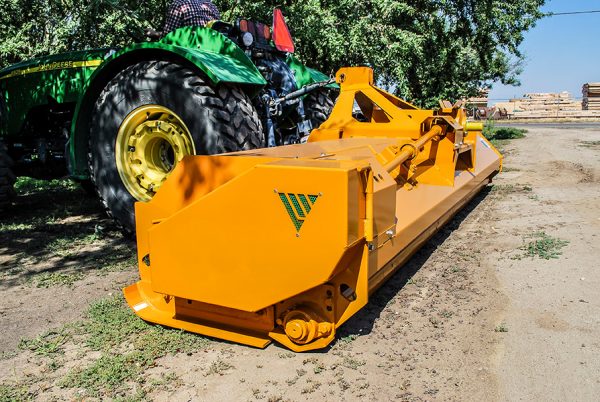

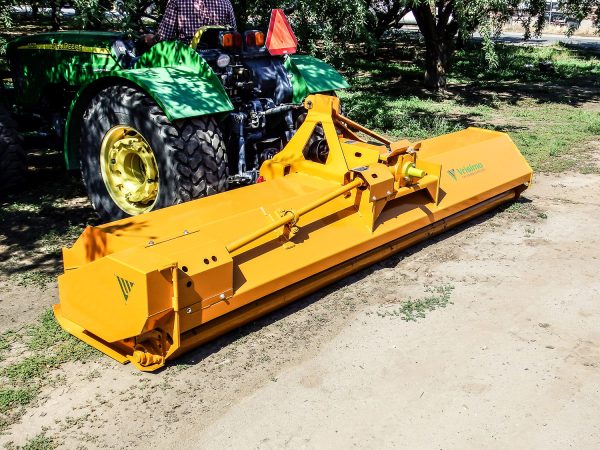

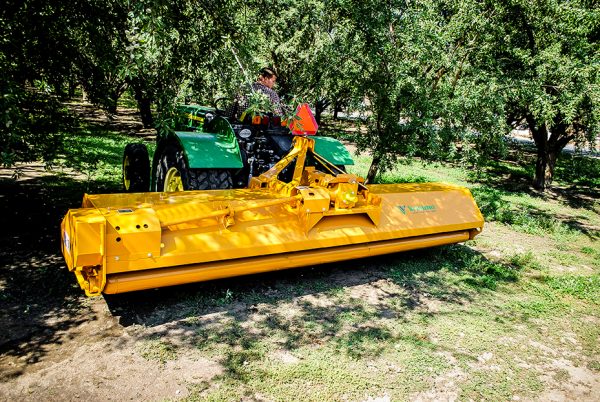

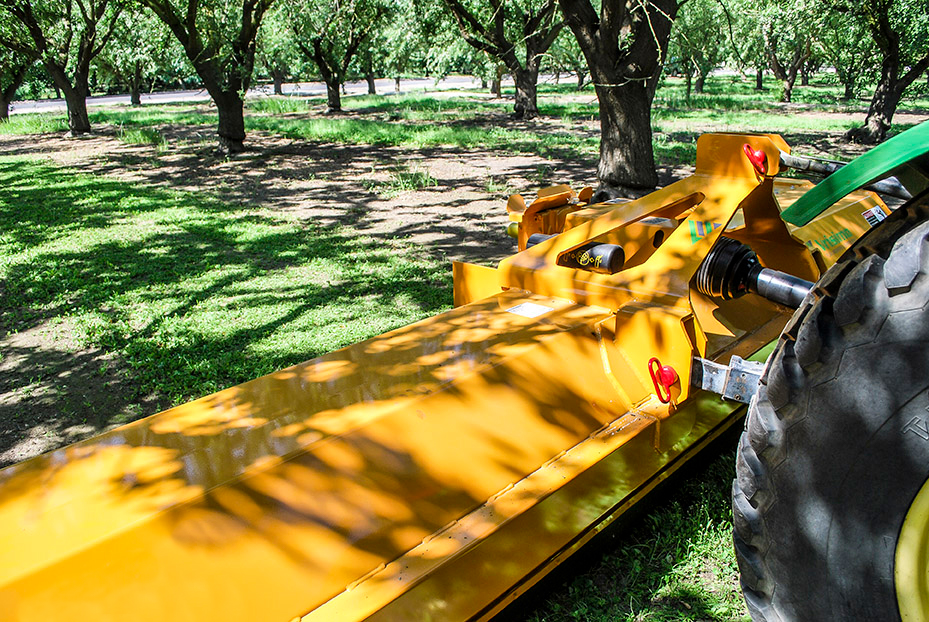

The Vrisimo Orchard LP Mower is the right tool to maintain an orchard from early spring through harvest. This flail mower ranges in cutting widths from 7 feet to 15 feet and features a 90-horsepower gearbox. It is a durable tool that efficiently cuts and mulches grass, leaves and other debris to create a smooth, sanitary orchard surface.


Wear Liners Standard: Made of abrasion-resistant material.
Size Flexibility: Available in widths from 7 feet to 15 feet, in 1-foot increments.
Electronically Balanced Cutter Drum: True Shaft cutter drum technology ensures smooth, vibration-free operation.
Super Tuf Knives, Hangers: Quality, American-made materials.
Quick-Change Hangers: Makes replacing knives easy.
Cat-2 A Frame: Available center-mounted or with an 11-inch offset.
Matching Banded 5VX Series Belt and Pulley: Provides optimal power transfer.
Adjustable Height: Rear roller adjusts from 0 to 6 inches.
Low-Profile Shield: Overall shield height just 26 inches.

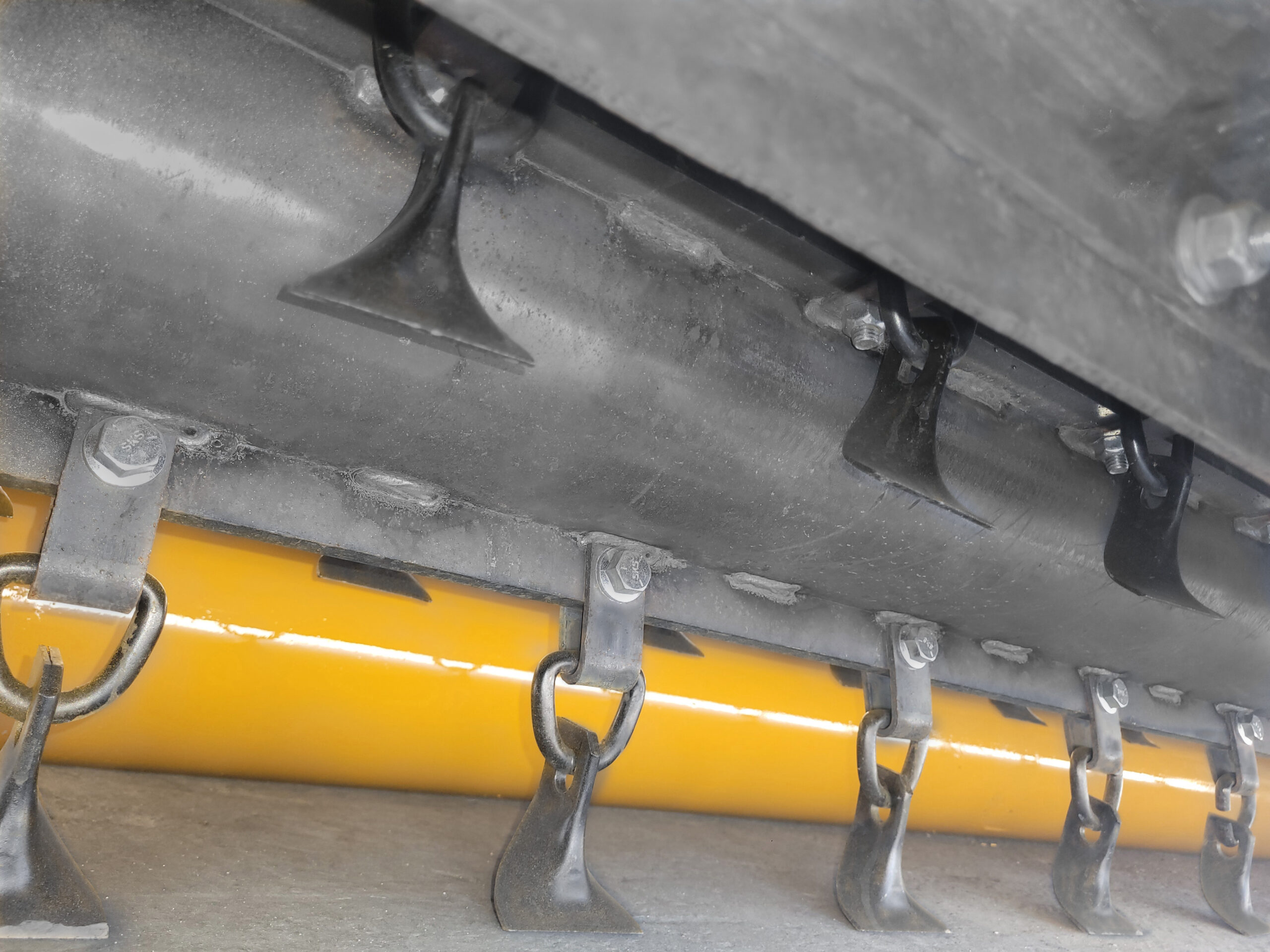

Super Tuf scoop knives create a vacuum effect, lifting debris and vegetation for improved mulching. Quick change hangers are standard for easy knife changes, saving time and money. The adjustable rear roller ensures uniform cutting height. The electronically balanced, 8-inch rotating cutter drum combines power with smooth operation. Wear liners are standard for longer life.
lp2084 lp2096 lp2108 lp2120 lp2132 lp2144 lp2156 lp2168 lp2180
Cutting Width 7′ 8′ 9′ 10′ 11′ 12′ 13′ 14′ 15′
Overall Width 8′ 9′ 10′ 11′ 12′ 13′ 14′ 15′ 16′
Weight 1770 lbs. 1890 lbs. 2010 lbs. 2140 lbs. 2250 lbs. 2370 lbs. 2490 lbs. 2610 lbs. 2730 lbs.
Number of Scoop Knives 40 44 48 56 60 68 76 84 92
Number of Industrial Knives 80 88 96 112 120 136 152 168 184
Height Adjustment 0-6″ 0-6″ 0-6″ 0-6″ 0-6″ 0-6″ 0-6″ 0-6″ 0-6″
Input PTO Speed 540 540 540 540 540 540 540 540 540
Gearbox Rating 90 HP 90 HP 90 HP 90 HP 90 HP 90 HP 90 HP 90 HP 90 HP
HP Requirement 40 45 50 50 55 60 65 70 75
Cutter Drum Speed 1850 rpm 1850 rpm 1850 rpm 1850 rpm 1850 rpm 1675 rpm 1675 rpm 1675 rpm 1675 rpm
