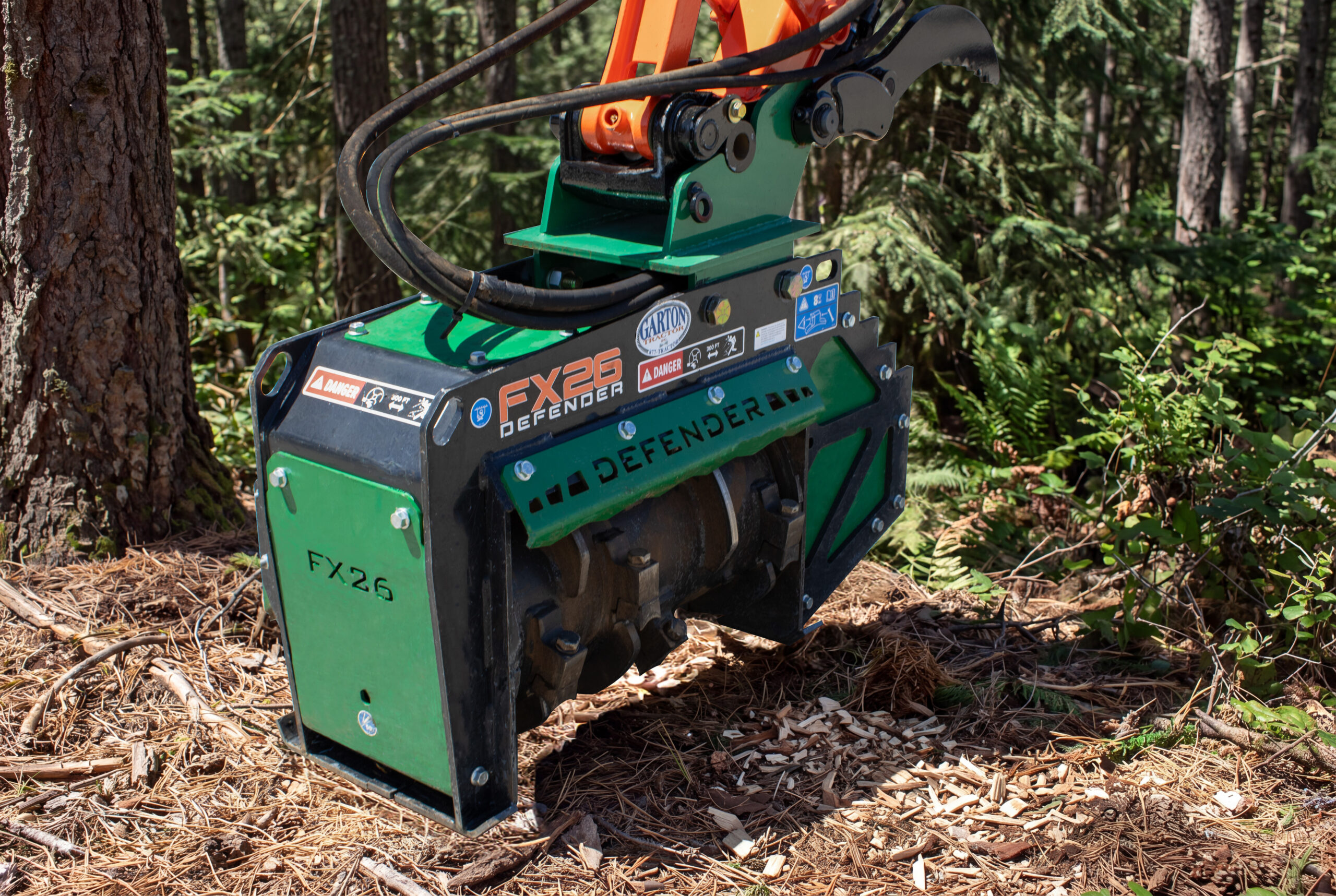

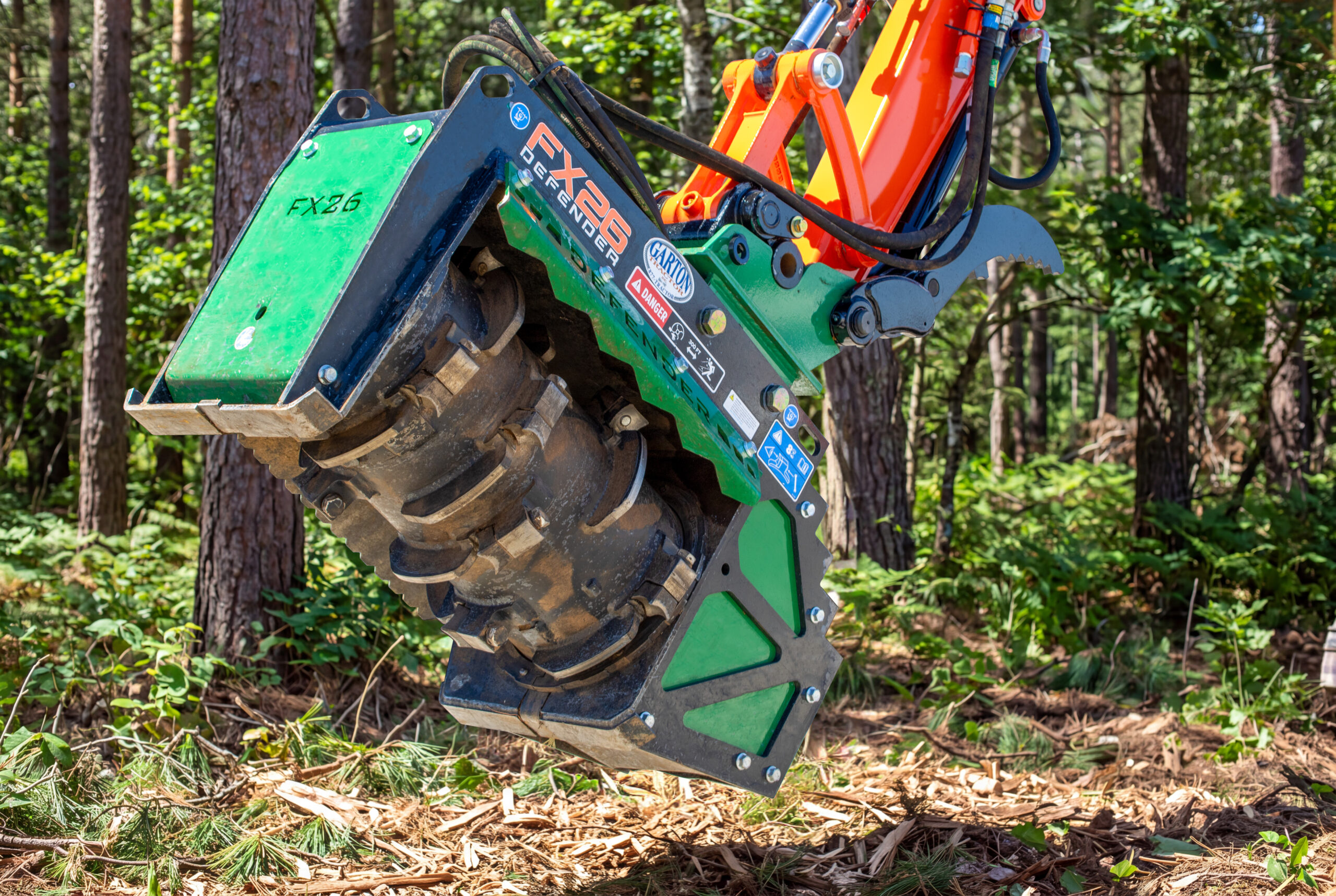

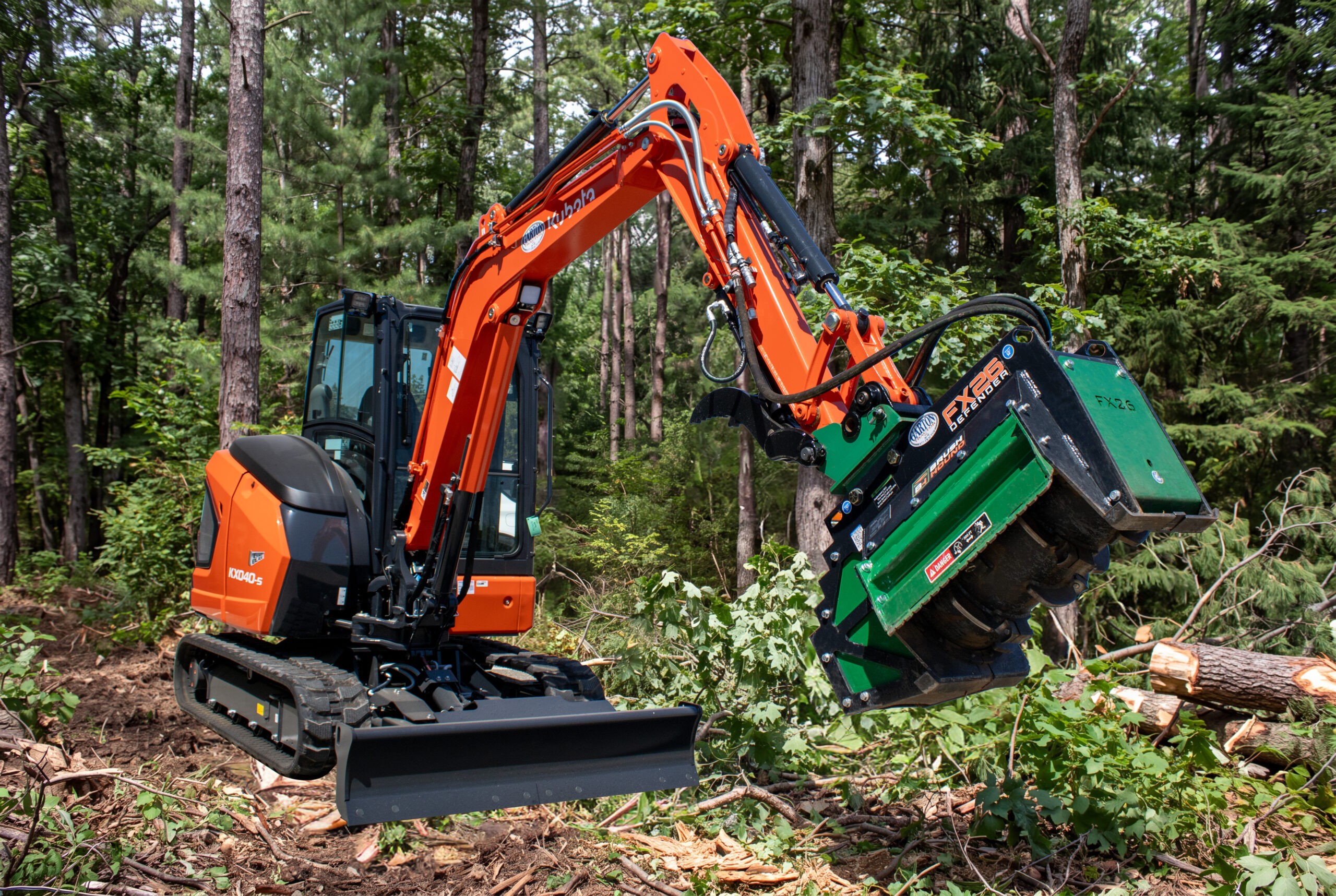

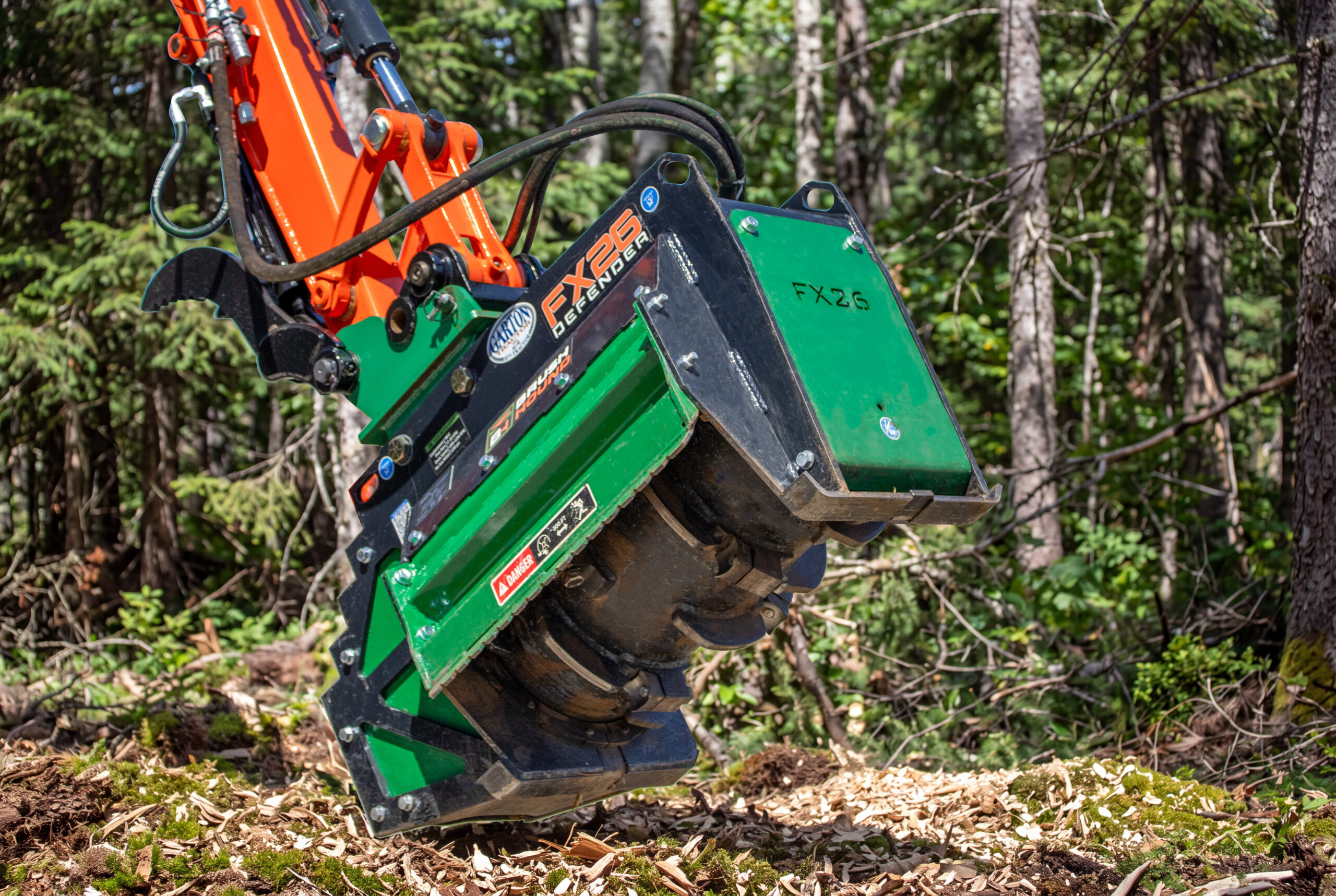

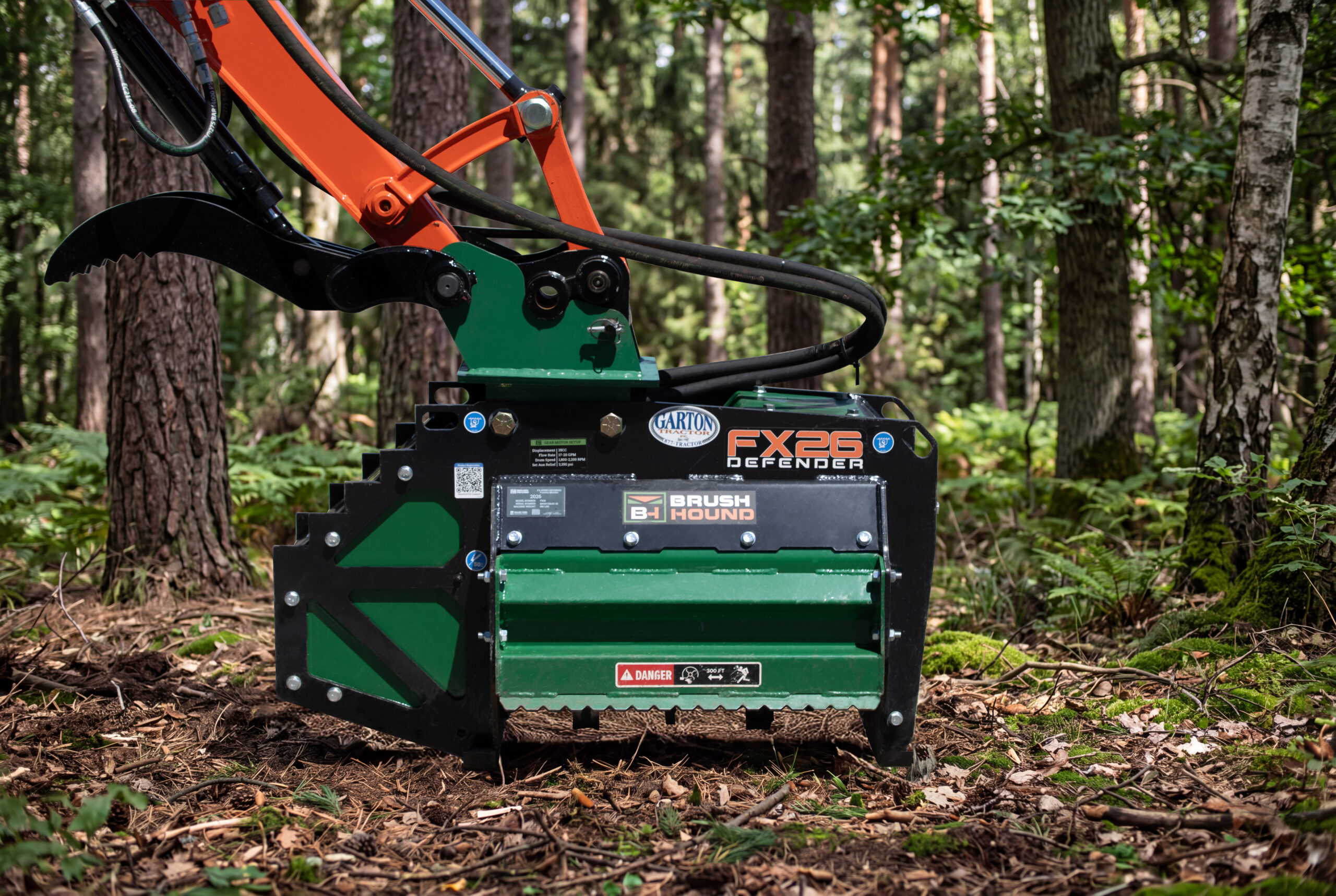

FX26 Defender Excavator Forestry Mulcher

Description

The FX26 Defender Forestry Mulcher is a well-balanced, rugged, and durable mulching head with a capacity of up to 6 inches. At just 750 pounds the FX26 packs a powerful punch in a small package that is durable, dependable and easy to maintain. As a compact forestry mulcher, it simply out-performs any other product in its class. Its size suits compact excavators well, allowing this small mulcher to be used on a large variety of applications including property maintenance, clearing a right-of-way, opening up a view or creating a defensible space in areas where wildfires are a threat. The FX26 is built to be your reliable partner year round. Cutting capacity .5-6”.

Purchase Parts Online

Quadco Style Cutter Knives: Easy to change 2” knives. Rotatable with four positions, one-piece steel alloy.
Hydraulic Direct Drive: Increases efficiency, power and torque; reduces maintenance.
Cuts Material Up to 6”: Grasses, cat tails, vines, trees.
Engineered for Compact and Mini Excavators: Only 15 GPM auxiliary hydraulic flow required.
The FX26 Defender Forestry Mulcher is a fixed-tooth cutter that weighs only 750 pounds. It is designed to operate on the standard thumb circuit on all 8,000 - 20,000-pound compact and mini excavators. Its quadco syle cutter knives have four positions and will make short work of trees up to 6 inches in diameter as well as vines, grasses and other material. Operating on hydraulic flows as low as 15-17 gallons per minute and 3000 psi; this means your power units do not require any modifications. Hours and hours of testing the four sided Quadco knife on large, hard, and soft woods, has proved that shredding 8" material is not a problem. Features like discharge curtain, integrated thumb saddle, bearing protection, direct drive, hoses and couplers, bolt on mount, and curb appeal are always standard on our machines. Since the FX26 Defender was conceived as a means to bring a power intensive capability to a low horsepower platform, not sacrificing the 10% was imperative and is just one of many design factors that made the FX26 Defender Forestry Cutter possible. This excavator mulcher was designed to easily cut through an environment of dense heavy brush and trees. The cutter drum provides the torque necessary to finely mulch wood or shred through vines. This engineered design minimizes wear on drive components and keeps the hydraulic system cool compared to other hydraulic intensive attachments.
Power Unit Size 8,000 - 20,000 lbs.
Cutting Width 26"
Overall Width 45"
Weight 750 lbs.
Number of Knives 12 Quadco style 2in
Hydraulic Flow Req 15-40 GPM
Hydraulic Pressure Req 3,000 PSI
Case Drain Line Required
Cutter RPM 1,800 - 2,000
Brush Capacity 6"
Motor Type Gear
